拉格朗日力学--经典双摆的案例

<h3>一、系统建模与参数定义</h3>

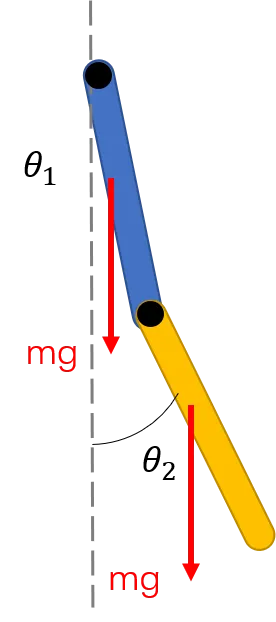

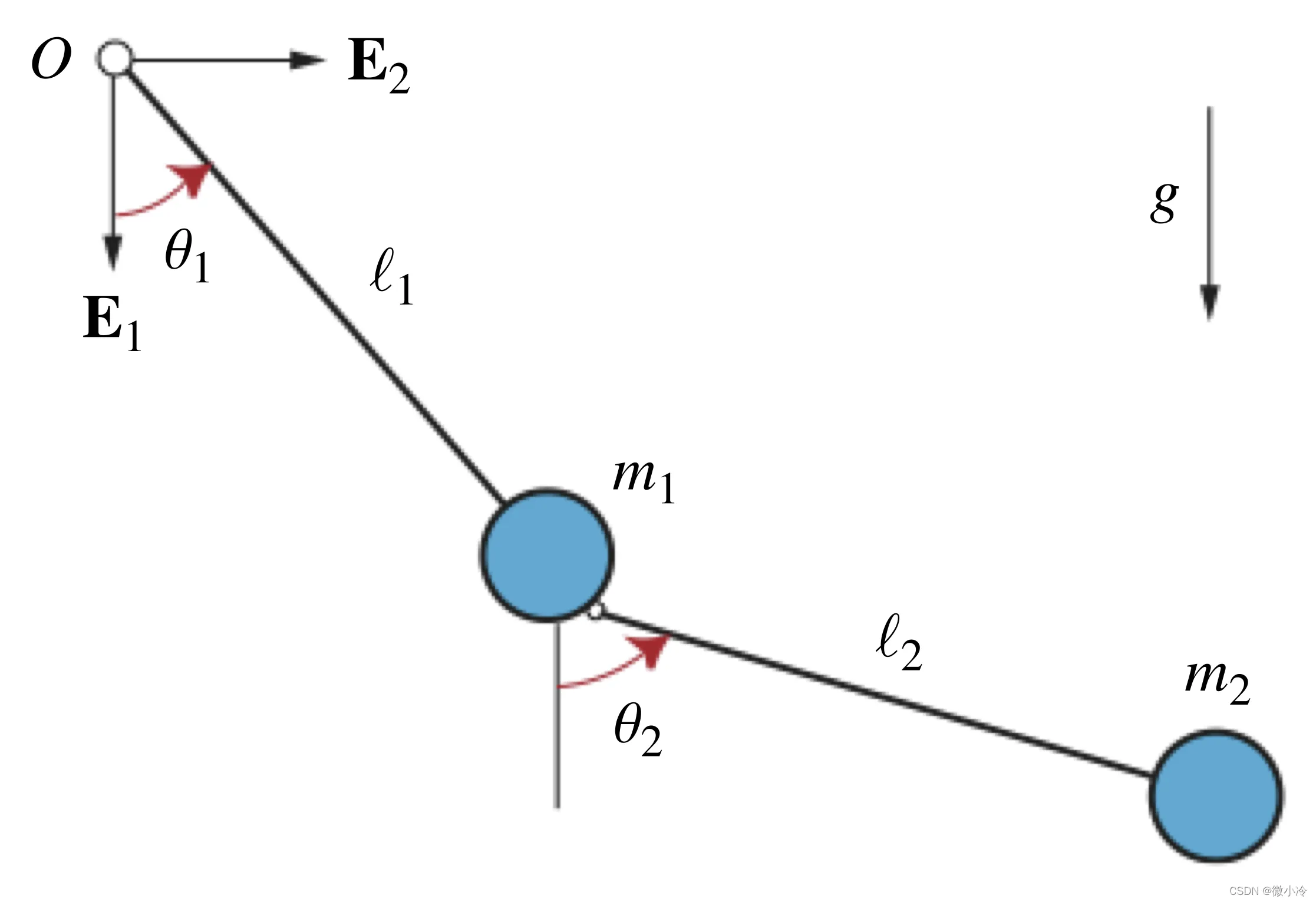

! m1 K! g( B3 @8 y0 k<p>考虑由两根无质量刚性杆组成的平面双摆：</p>
<p><img src="data/attachment/forum/202510/15/132701hq25xg4z6g642q4j.webp" alt="R-C1.webp" title="R-C (1).webp" /><img src="data/attachment/forum/202510/15/132702dyqtwgyjtzpgjj03.webp" alt="5f27f23469c44620b5382accb18380e6.webp" title="5f27f23469c44620b5382accb18380e6.webp" /></p>
1 t$ K) K7 q0 u; v' t9 X<p><img src="data/attachment/forum/202510/15/132702ztshdfhpfjs9tfcf.webp" alt="7d1bb93fb06e59b99a1b157c8599b6be.webp" title="7d1bb93fb06e59b99a1b157c8599b6be.webp" /></p>
2 M% q, ~! W* O, _4 X. n$ T<div class="language-math">上端杆长\\(L_1\\)，下端连接质量\\(m_1\\)的小球</div>
8 b/ {( r  h! U6 ~0 ]<div class="language-math">下端杆长\\(L_2\\)，末端连接质量\\(m_2\\)的小球</div>
<div class="language-math">两杆与竖直方向夹角分别为\\(\theta_1\\)、\\(\theta_2\\)（广义坐标，2 个自由度）</div>
% F/ D6 [5 N) Z* V4 N+ U<div class="language-math">重力加速度为\\(g)，系统无摩擦约束</div>
<h3>二、拉格朗日量构建（L=T-V）</h3>
- U% |$ u0 A5 r9 J<h4>1. 动能计算（平动动能总和）</h4>
<p>通过坐标变换将小球位置表示为广义坐标的函数：</p>
& {& N  a- C" m/ w: h% m% t, ~' @<pre><code>x₁ = L₁sinθ₁,  y₁ = -L₁cosθ₁
( C! c& S7 |, L+ Ex₂ = L₁sinθ₁+L₂sinθ₂,  y₂ = -L₁cosθ₁-L₂cosθ₂
</code></pre>
<p>对时间求导得速度分量，动能为：</p>
<div class="language-math">(T = \frac{1}{2}m_1(\dot{x}_1^2+\dot{y}_1^2) + \frac{1}{2}m_2(\dot{x}_2^2+\dot{y}_2^2))</div>
; I0 h! z! @' U$ W<p>化简后：</p>
<div class="language-math">(T = \frac{1}{2}(m_1+m_2)L_1^2\dot{\theta}_1^2 + \frac{1}{2}m_2L_2^2\dot{\theta}_2^2 + m_2L_1L_2\dot{\theta}_1\dot{\theta}_2\cos(\theta_1-\theta_2))</div>
- f& B/ M0 K" f" I6 Z+ X7 R<h4>2. 势能计算（重力势能总和）</h4>
/ E1 x) y/ G' E! s* e<p>以悬挂点为势能零点：</p>
<div class="language-math">(V = m_1gL_1(1-\cos\theta_1) + m_2g[L_1(1-\cos\theta_1)+L_2(1-\cos\theta_2)])</div>
0 a+ z, w# G0 Y6 S<h4>3. 拉格朗日量确立</h4>
<div class="language-math">(L = T - V = \left[ \frac{1}{2}(m_1+m\_2)L_1^2\dot{\theta}_1^2 + \frac{1}{2}m_2L_2^2\dot{\theta}_2^2 + m_2L_1L_2\dot{\theta}\_1\dot{\theta}_2\cos(\theta_1-\theta_2) \right]</div>
: i7 t1 {9 C: T<div class="language-math">- \left[ (m_1+m_2)gL_1(1-\cos\theta_1) + m_2gL_2(1-\cos\theta_2) \right])</div>
. I/ M% |9 L+ h5 @* _<h3>三、欧拉 - 拉格朗日方程求解</h3>
; ]& v4 {1 {' b7 v" g1 j<p>对两个广义坐标分别应用方程：</p>
+ i# S) }4 _1 i$ {7 y: r7 G<div class="language-math">(\frac{d}{dt}\left(\frac{\partial L}{\partial \dot{\theta}_i}\right) - \frac{\partial L}{\partial \theta_i} = 0\\)</div>
0 I5 u: I3 l8 L5 c8 J0 v<h4>1. 关于θ1的方程</h4>
! A1 ~5 B& e& A<ul>
" R0 h. H- M& o' Z4 s) W0 D$ m<li>计算偏导数：</li>
' `% E+ u4 l; b7 g+ G) u: ^</ul>
<div class="language-math">(\frac{\partial L}{\partial \dot{\theta}\_1} = (m_1+m_2)L_1^2\dot{\theta}_1 + m_2L_1L_2\dot{\theta}_2\cos(\theta_1-\theta_2)\\)</div>
<div class="language-math">\\(\frac{\partial L}{\partial \theta_1} = -m_2L_1L_2\dot{\theta}_1\dot{\theta}_2\sin(\theta_1-\theta_2) - (m_1+m_2)gL_1\sin\theta_1\\)</div>
& ~3 a$ K& I2 D) u( \<ul>
<li>时间导数与整理后得：</li>
3 P. o2 K* `2 e. b4 o; ~</ul>
<div class="language-math">\\((m_1+m_2)L_1\ddot{\theta}_1 + m_2L_2\cos(\theta_1-\theta_2)\ddot{\theta}_2 + m_2L_2\sin(\theta_1-\\theta\_2)\dot{\theta}_2^2 + (m_1+m_2)g\sin\theta_1 = 0 \quad (1))</div>
/ N( q& U5 Q) A$ G* E' ^- \<h4>2. 关于θ2的方程</h4>
<p>同理推导得：</p>
% c$ {& h, w, X* M7 }<div class="language-math">(L_2\ddot{\theta}_2 + L_1\cos(\theta_1-\theta_2)\ddot{\theta}_1 - L_1\sin(\theta_1-\theta_2)\dot{\theta}_1^2 + g\sin\theta_2 = 0 \quad (2)\\)</div>
<h3>四、物理意义与拓展</h3>
( o: X" T6 m% G* Q* Y) i- v# f<ol>
; A7 J4 t) {2 a/ ~<li><strong>非线性特性</strong>：</li>
<li>
<div class="language-math">方程 (1)(2) 含\\(\sin(\theta_1-\theta_2)\\)等非线性项，大摆角时表现混沌行为（对初始条件极度敏感）</div>
) V+ P7 ?, C' ]</li>
<li><strong>简化特例</strong>：</li>
3 f$ {/ P! P. J8 Z<li>
+ D/ s: Q  l0 |$ }7 ?$ Z( u: s<div class="language-math">当\\(m_2=0\\)时退化为单摆方程\\(L_1\ddot{\theta}_1 + g\sin\theta_1=0\\)</div>
; E6 D. w2 F4 t7 g- H</li>
* z. c7 B4 o4 I& V+ {% `<li><strong>工程关联</strong>：弹性双摆模型（杆具弹性形变）可用于柔性机械臂、仿生运动研究</li>
<li><strong>数值验证</strong>：通过 Python 的odeint函数求解微分方程，可绘制动图展示轨迹演化</li>
</ol>
